Animated Explanation of Complex Mechanisms

Research has proven that we learn much better when shown visual images, than any other form of learning. We can catch and understand, in a single glance, much more than if we read a description. In other words, it is much easier to understand complicated mechanisms like the ones we are about to show you, if we show you how they work visually. So without further a-do, here are some complicated mechanisms you may have always wondered about, in simple animation form!

Radial Engines
Radial engines are used in aircraft having propeller connected to the shaft delivering power in order to produce thrust its basic mechanism is as follows

Steam engine Principle
Steam engine once used in locomotives was based on the reciprocating principle as shown below.

Sewing Machine

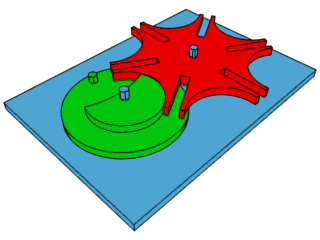

Maltese Cross Mechanism
This type of mechanism is used in clocks to power the second hand movement.

Manual Transmission Mechanism
The mechanism also called as “stick shift” is used in cars to change gears manually.

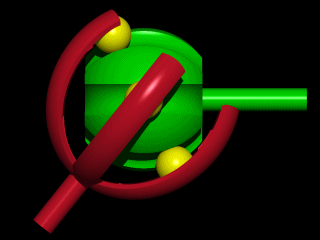

Constant Velocity Joint
This mechanism is used in the front wheel drive cars.

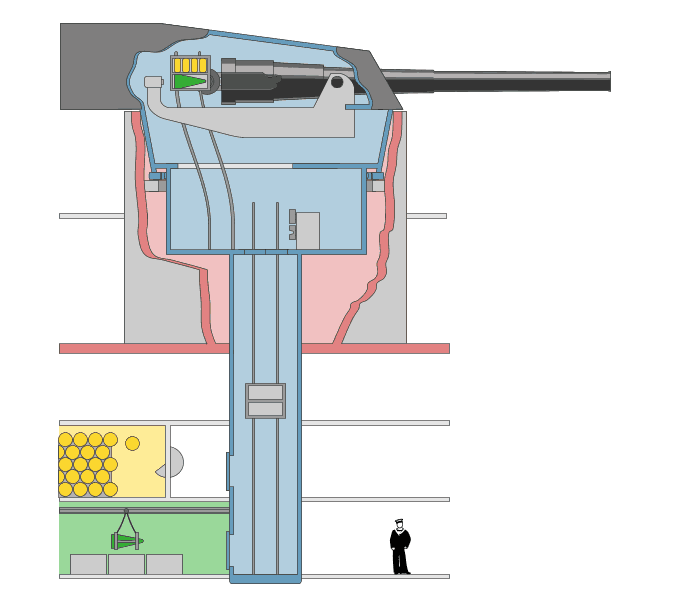

Torpedo-Boat destroyer System
This system is used to destroy fleet in naval military operations.

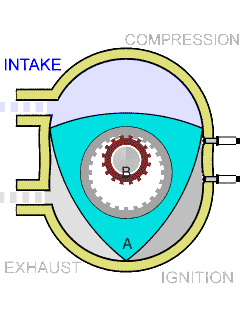

Rotary Engine
Also called as Wankel engine is a type of internal combustion engine has a unique design that converts pressure into rotating motion instead of reciprocating pistons.
